sunnySide ↑ Solar Lab & Orchards NTP

Server Profile

• https://support.ntp.org/bin/view/Servers/PublicTimeServer000898

Offset Monitoring & Score

• https://www.ntppool.org/scores/73.88.59.191

Founded

• 2013

Location

• Burnsville, MN, United States [55337]

Zones

North America

• north-america.pool.ntp.org

United States of America

• us.pool.ntp.org

Hostname

• ntp.heinzsolar.com

Stratum

• 2

Computer Hardware

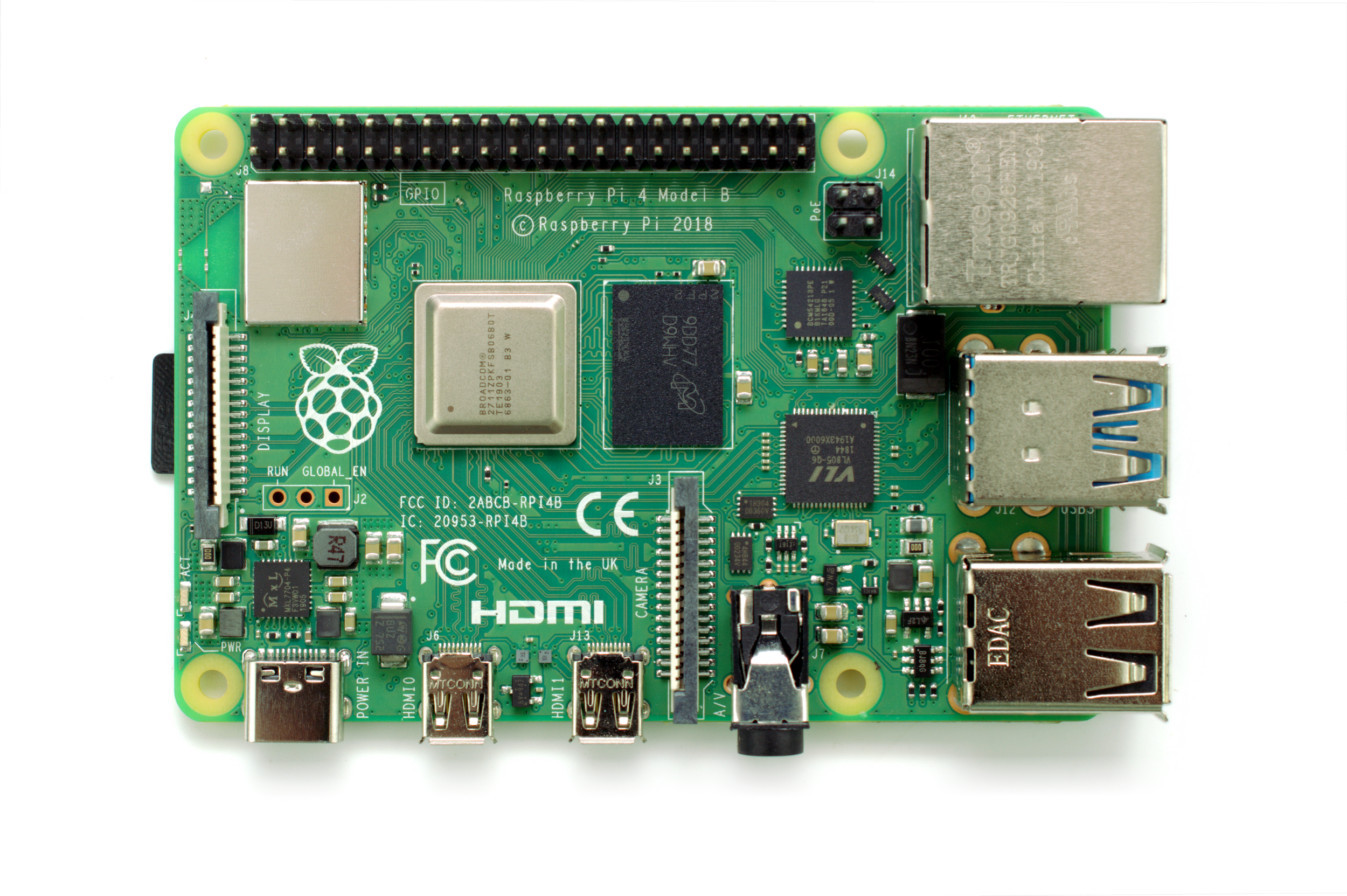

• Raspberry Pi 4 Model B (4GB)

Case

• PicoCluster Pico 5

Storage

Micro SD

SanDisk 8GB

• Raspberry Pi 4 Model B UEFI Firmware for USB 3.0 Boot

USB 3.0

Samsung FIT Plus USB 3.1 Flash Drive 128GB

• Operating System

Operating System

• OpenBSD 6.8 ARM64

ntpd build/version

• OpenNTPD 6.2p3

UEFI Firmware Customizations

• Device Manager → Raspberry Pi Configuration → Advanced Configuration → Limit RAM to 3 GB to <Disabled> [Enabled by Default]

Router

• pfSense

Future Goals

Move to Stratum 1

Raspberry Pi GPS/RTC Expansion Board

• PPS output for NTP services
• ThePiHut Pi GPS HAT Case for Raspberry Pi 4

Active GPS Patch Antenna with SMA Connector

• 3 meter

Building a Raspberry-Pi Stratum-1 NTP Server

• Old, but this is very relevant.

Thank You!

sudopigeon

• How to install OpenBSD on a Raspberry Pi 4 - sudopigeon

Pi Firmware Task Force

• Server-Ready UEFI firmware for the Raspberry Pi 4 Model B

Helpful Links

OpenBSD/arm64

• Installation Instructions
• OpenNTPD Tutorial by calomel.org

Reference

• OpenBSD Partition Layout via disklabel

mnretrogamer029# disklabel -p m sd0

# /dev/rsd0c:

type: SCSI

disk: SCSI disk

label: Flash Drive FIT

duid: 24af78990a0f8ab1

flags:

bytes/sector: 512

sectors/track: 63

tracks/cylinder: 255

sectors/cylinder: 16065

cylinders: 15600

total sectors: 250626566 # total bytes: 122376.3M

boundstart: 65536

boundend: 250626566

drivedata: 0

16 partitions:

#                size           offset  fstype [fsize bsize   cpg]

 a:          1024.0M            65536  4.2BSD   2048 16384 12960 # /

 b:          3178.2M          2162688    swap                    # none

 c:        122376.3M                0  unused

 d:          4096.0M          8671680  4.2BSD   2048 16384 12960 # /tmp

 e:          9940.4M         17060288  4.2BSD   2048 16384 12960 # /var

 f:          6144.0M         37418304  4.2BSD   2048 16384 12960 # /usr

 g:          1024.0M         50001216  4.2BSD   2048 16384 12960 # /usr/X11R6

 h:         17758.3M         52098368  4.2BSD   2048 16384 12960 # /usr/local

 i:            16.0M            32768   MSDOS

 j:          2048.0M         88467424  4.2BSD   2048 16384 12960 # /usr/src

 k:          6144.0M         92661728  4.2BSD   2048 16384 12960 # /usr/obj

 l:         70987.3M        105244640  4.2BSD   2048 16384 12960 # /home

mnretrogamer029# uname -a

OpenBSD mnretrogamer029.heinzsolar.com 6.8 GENERIC.MP#2 arm64

mnretrogamer029# ps aux | grep ntpd

_ntp     16351 16.5  0.1   796  2600 ??  S<p     8:32PM    8:08.71 ntpd: ntp en

_ntp     83044  0.0  0.1   684  2396 ??  Ip      8:32PM    0:00.03 ntpd: dns en

root     33148  0.0  0.0   292  1020 p0  S+p     9:16PM    0:00.01 grep ntpd

mnretrogamer029# flux.capacitor engage

ksh: flux.capacitor: not found

mnretrogamer029# outatime

ksh: accelerating to 88mph
